Similar Otis Passenger Elevator with Gearless Traction Machine
Product DescriptionProduct Name:Similar Otis Passenger Elevator with Gearless Traction MachinePassenger elevator are designed for different types of residential buildings, villas residential, office buildings.Passenger elevator for homes have high performance elevator parts, permanent magnet synchro......
Send Inquiry
Product Description
Product Description
Product Name:Similar Otis Passenger Elevator with Gearless Traction Machine
Passenger elevator for homes have high performance elevator parts, permanent magnet synchronous drive and intelligent
door system, safe and reliable.
Passenger elevator for homes permanent magnet synchronous traction machine,smaller volume but higher efficiency, saving
more space for the headroom.
Passenger elevator highest safty standard, to ensure passenger safty.

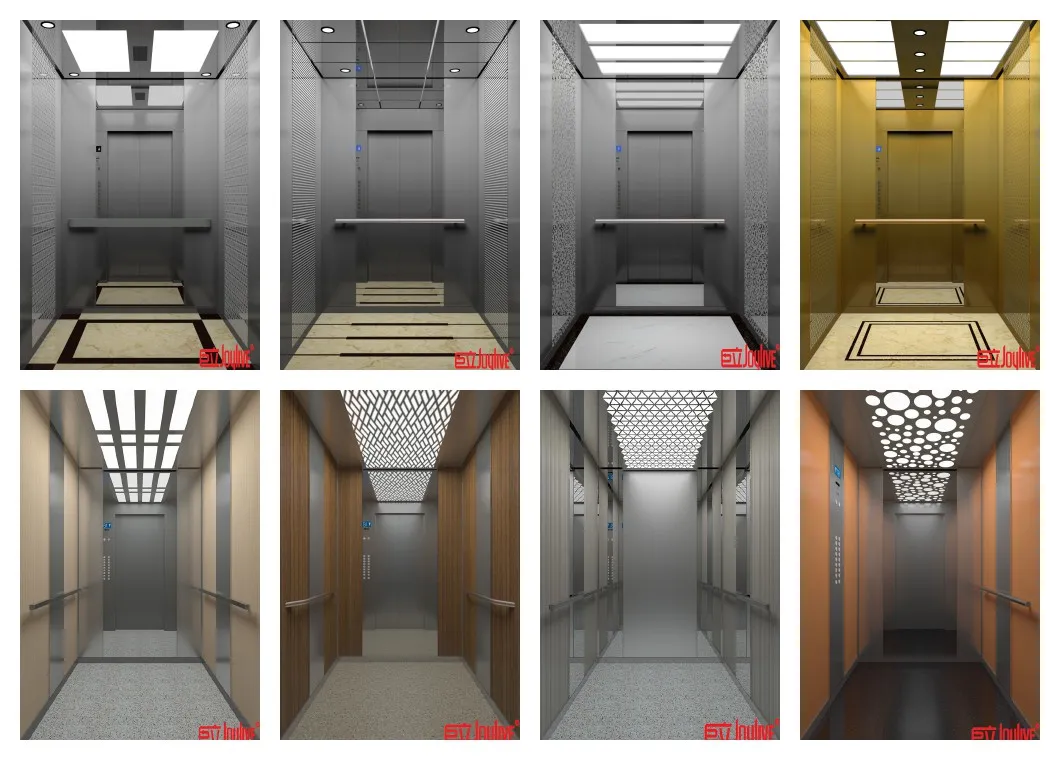

Cabin
| Ceiling | Hairline stainless steel, white acrylic+LED |
| Cabin panel | Hairline stainless steel Mirror Stainless Steel |
| COP | Hairline stainless steel |
| Handrail | Hairline stainless steel |
| Flooring | Marble |
Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Dimension CW*CD(mm) | Door Opening Dimension EW*EH(mm) | Standard Shaft Dimension HW*HD(mm) | Max Shaft Dimension HW*HD(mm) | Standard Pit Depth Pd(mm) | Standard top floor height Th(mm) |
| 630 | 1 | 1100×1400 | 700×2100 | 1850×1850 | 2550×2450 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 630 | 1 | 1100×1400 | 700×2100 | 1850×1900 | 2550×1900 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 800 | 1 | 1350×1400 | 800×2100 | 2100×1850 | 2800×2450 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 800 | 1 | 1350×1400 | 800×2100 | 2100×1900 | 2800×1900 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 1000 | 1 | 1600×1400 | 900×2100 | 2350×1850 | 3050×2450 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 1000 | 1 | 1600×1400 | 900×2100 | 2350×1900 | 3050×1900 | 1500 | 4250 |
| 1.5 | 1550 | 4350 | |||||
| 1.75 | 1600 | 4400 | |||||
| 1150 | 1 | 1800×1400 | 1100×2100 | 2700×1800 | 3400×2400 | 1500 | 4350 |
| 1.5 | 1550 | 4450 | |||||
| 1.75 | 1600 | 4500 | |||||
| 1250 | 1 | 1900×1500 | 1100×2100 | 2800×1900 | 3500×2500 | 1500 | 4350 |
| 1.5 | 1550 | 4450 | |||||
| 1.75 | 1600 | 4500 | |||||
| 1350 | 1 | 1900×1600 | 1100×2100 | 2800×2000 | 3500×2600 | 1500 | 4350 |
| 1.5 | 1550 | 4450 | |||||
| 1.75 | 1600 | 4500 | |||||
| 1600 | 1 | 2000×1800 | 1100×2100 | 2900×2200 | 3600×2800 | 1500 | 4350 |
| 1.5 | 1550 | 4450 | |||||
| 1.75 | 1600 | 4500 | |||||
| 1600 | 1 | 1800×1800 | 1000×2100 | 2700×2300 | 3400×2300 | 1500 | 4350 |
| 1.5 | 1550 | 4450 | |||||
| 1.75 | 1600 | 4500 |

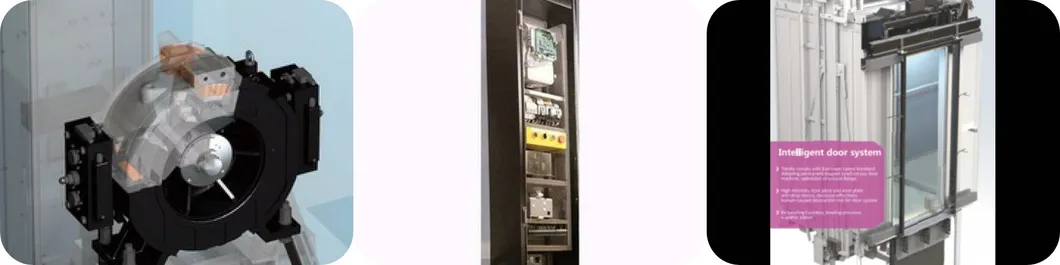

Elevator Parts
Joylive Traction Machine
Product Name:Similar Otis Passenger Elevator with Gearless Traction Machine
Integrated and ultra thin design for hub and spoke.
More flexible allocation for traction machine.
Joint test with international authority, ensure good quality of products.
Brakeage Self-Test Technology, ensure reliable brake action.
Cube Pro
Product Name:Similar Otis Passenger Elevator with Gearless Traction Machine
Intelligent control system.
Modularization cabinet design configuration .
Adopting CAN-BUS to transmit data between control accurancy and reliability.
One-click hoist self-learning system.
Cary advanced internet of things intelligent system.
Remote online technology service.
Intelligent door system
Product Name:Similar Otis Passenger Elevator with Gearless Traction Machine
Totally comply with European Latest Standard.Adopting permanent magnet synchronous door machine, optimized structural
design.High-intensity door plate and door plate anti-drop device, decrease effectively
human-caused destruction risk for door system Re-Leveling Function, leveling precision is within 10mm.
Packing & Delivery
Packing Details :
Similar Otis Passenger Elevator with Gearless Traction Machine
Fumigated Wooden Case or Fumigation-free Plywood or Case for Outdoor home mini elevator lift machine
Cheap Small Home Hydraulic Lift Elevator For Elder
Home Elevator Lift With Stable System For Office Building Using
Delivery Details : within 20 days after the payment.
Product Name:Similar Otis Passenger Elevator with Gearless Traction Machine
Product Name:
Similar Otis Passenger Elevator with Gearless Traction Machine

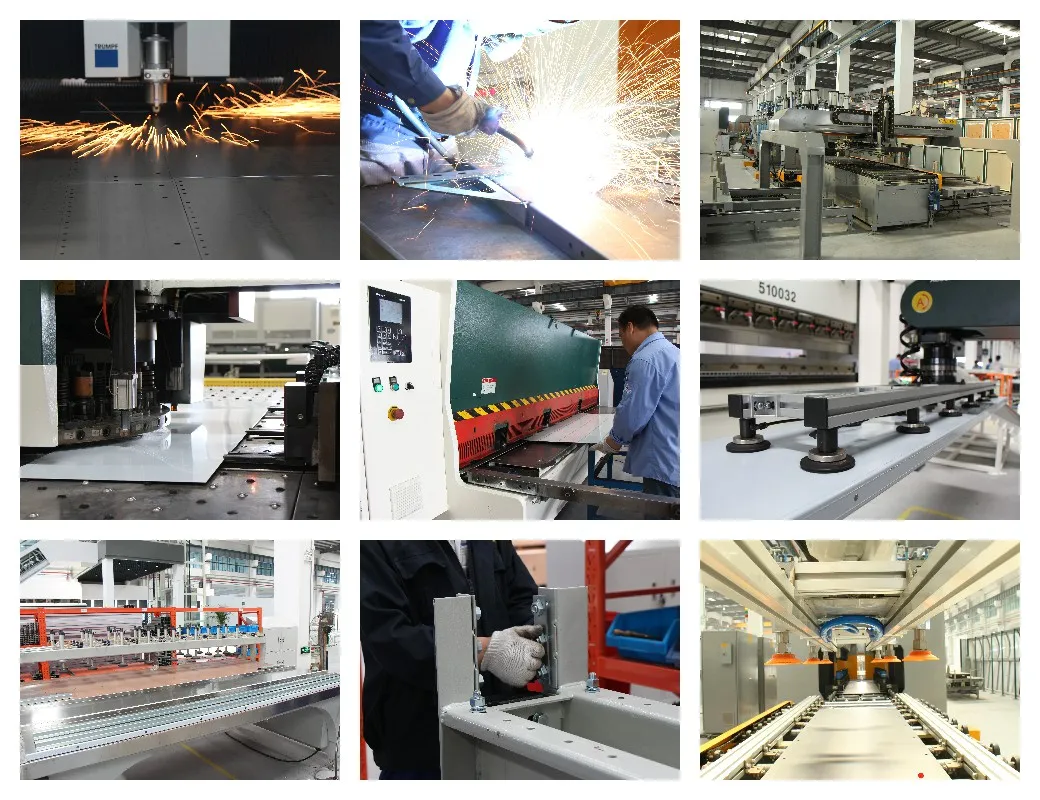

Passenger Elevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found precision
detection experimental center.
Passenger Elevator followed international QC management to elevator production, we set rigorous manufacturing standards
of Hosting Elevator to make sure every elevator remarkable.
Multiply Products
Passenger Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.
Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.
Safety First
High Safety Standard ensured for any Accidents occurs.ISO9001:2000 quality and CE marking certification systems.
Our Exhibition
Our Cetification
FAQ
