Home Lift/Passenger Elevator with Customized Small Size Cabin
About passenger elevatorA vertical elevator powered by a motor, equipped with a box-like pod, used for multistory building passengers. Fixed lifting equipment for specified floors. It has a car running between at least two vertical rigid guides.Car size and structure for passenger access and loading......
Send Inquiry
Product Description
About passenger elevator
A vertical elevator powered by a motor, equipped with a box-like pod, used for multistory building passengers. Fixed lifting equipment for specified floors. It has a car running between at least two vertical rigid guides.
Car size and structure for passenger access and loading and unloading. It is customary to use the elevator as a general term for vertical transportation in buildings, regardless of the driving mode.
Decoration Optional
Passenger Elevator Parameter
Civil engineering figure
A vertical elevator powered by a motor, equipped with a box-like pod, used for multistory building passengers. Fixed lifting equipment for specified floors. It has a car running between at least two vertical rigid guides.
Car size and structure for passenger access and loading and unloading. It is customary to use the elevator as a general term for vertical transportation in buildings, regardless of the driving mode.

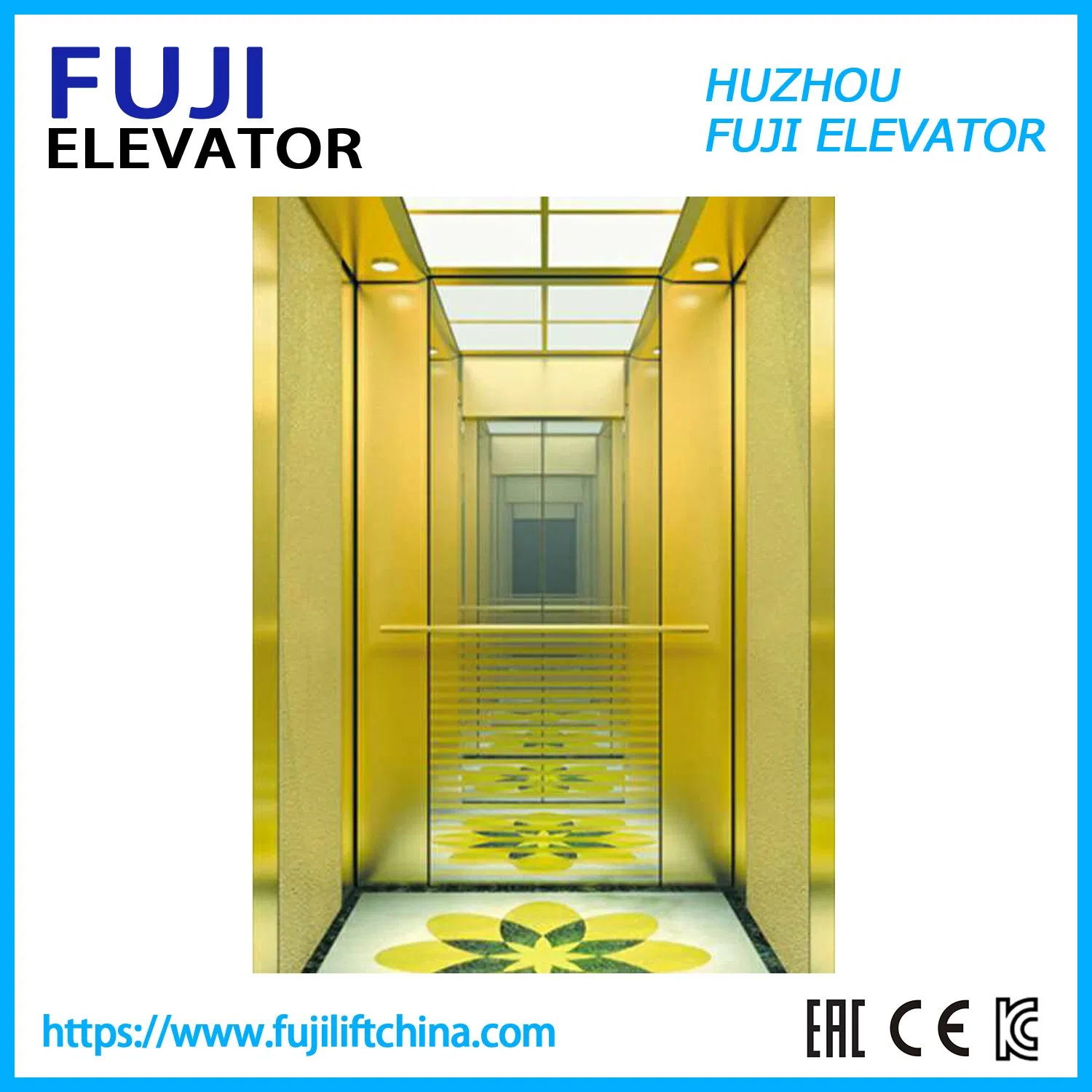

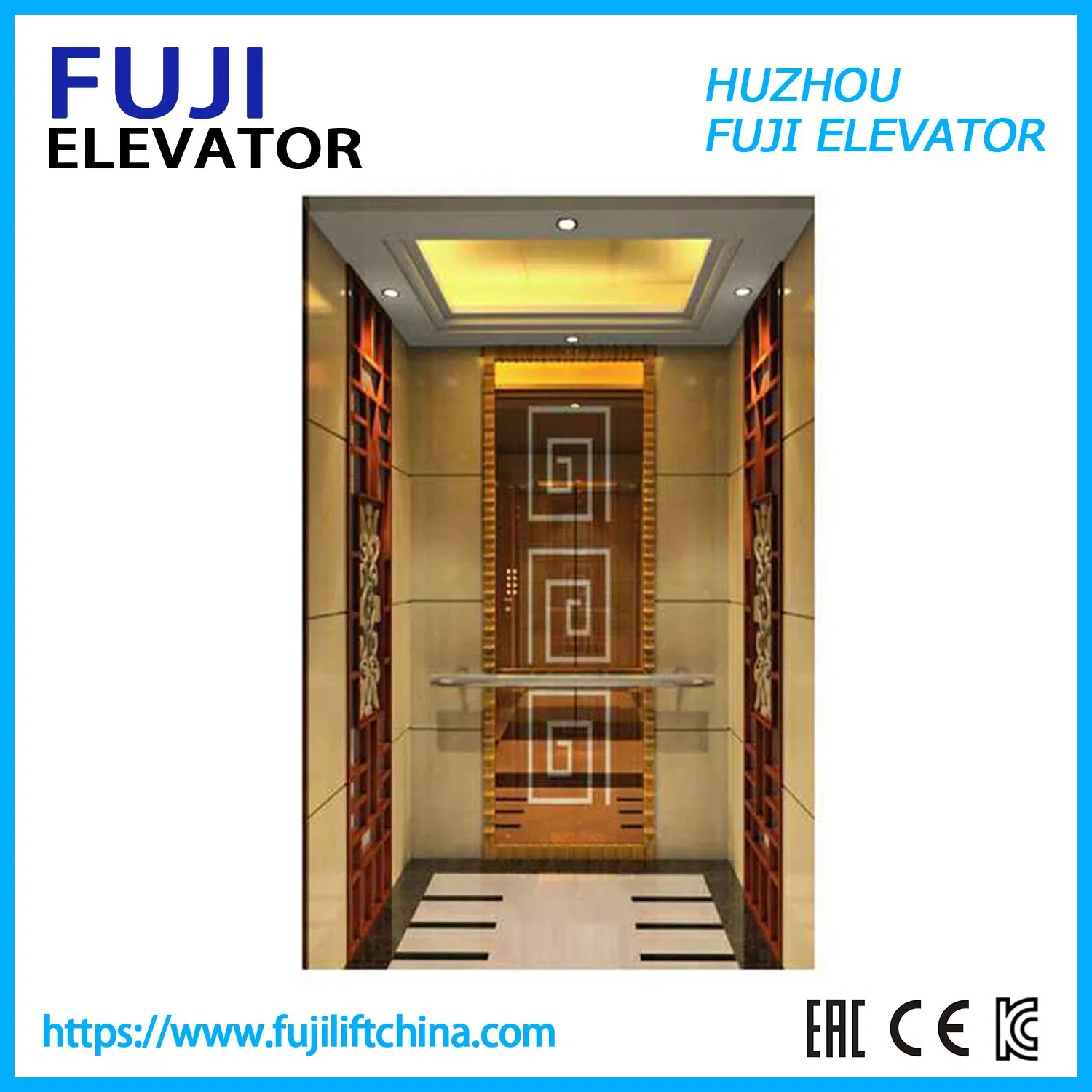

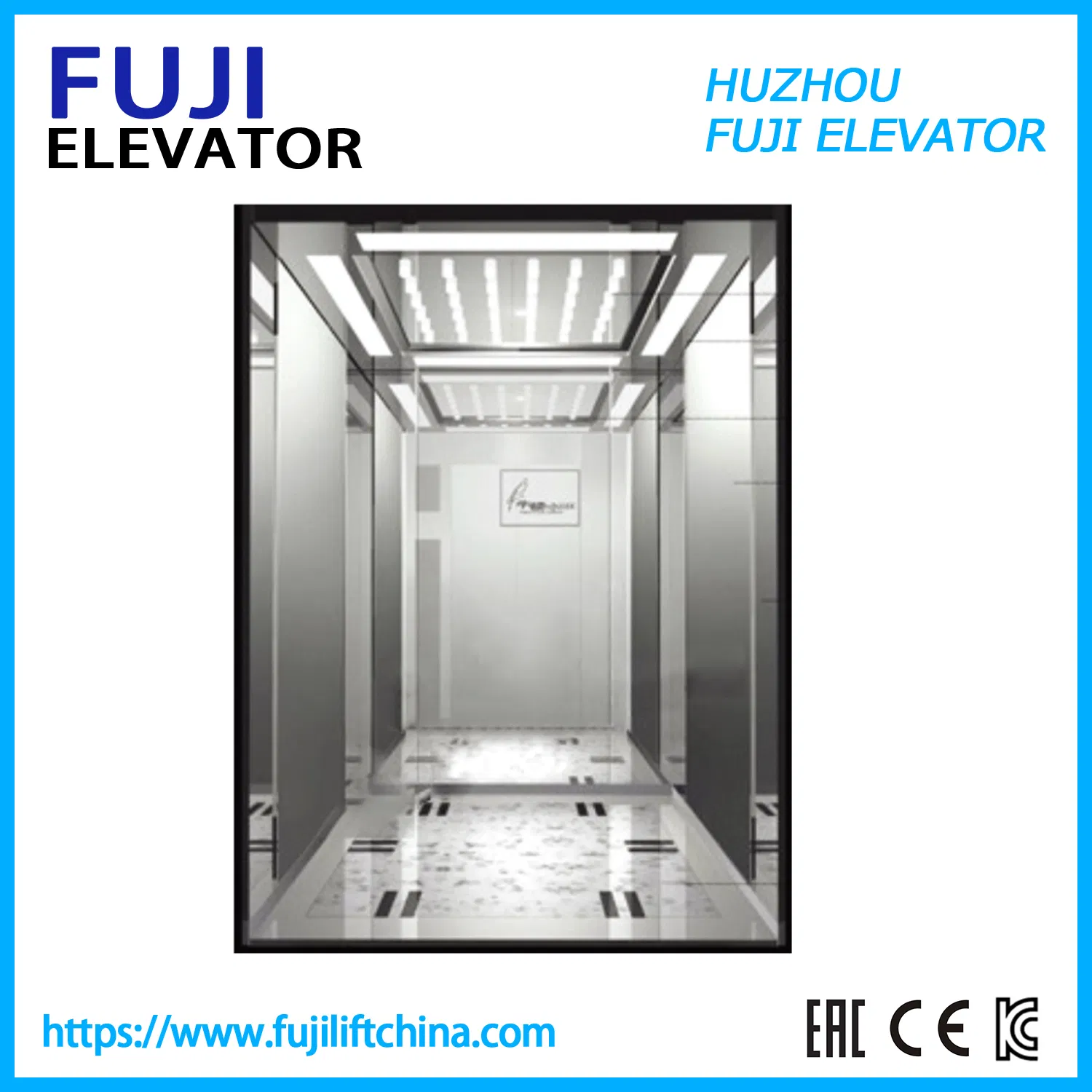

Decoration Optional
| It's wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | The first layer of hairline, the remaining steel plate Spraying |
| Hall door | The first layer of hairline, the remaining steel plate Spraying |
Passenger Elevator Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Size cw*cd(mm) | Door Opening Size ew*eh(mm) | Shaft Size hw*hd(mm) | Top floor height Th(mm) | Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 4500 | 1500 |
| 630 | 1 | 1400×1100 | 800×2100 | 2250×1900 | 4500 | 1500 |
| 1.5 | 4700 | 1600 | ||||
| 1.75 | ||||||
| 800 | 1 | 1400×1350 | 800×2100 | 2200×1950 | 4000 | 1500 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1000 | 1 | 1500×1550 | 900×2100 | 2350×2150 | 4000 | 1600 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1600 | 1 | 1800*2000 | 1100*2100 | 2900*2200 | 4350 | 1500 |
| 1.5/ 1.75 | 4500 | 1600 |
Civil engineering figure
