High Quality Elevator Traction System Cast Iron Deflector Sheave Spare Parts for Lift
Elevator Deflector SheaveModelDiameterApertureNumberRopeSlot PitchThicknessThicknessRatedBearingof slotsload DENdPHhQ NV-240-01φ2408026.5104260≤450KG6206NV-240-028036.5104280≤800KG6208NV-240-039046.51052806210NV-240-0411056.5106580≤1000KG6212NV-320-01φ32011038125......
Send Inquiry
Product Description

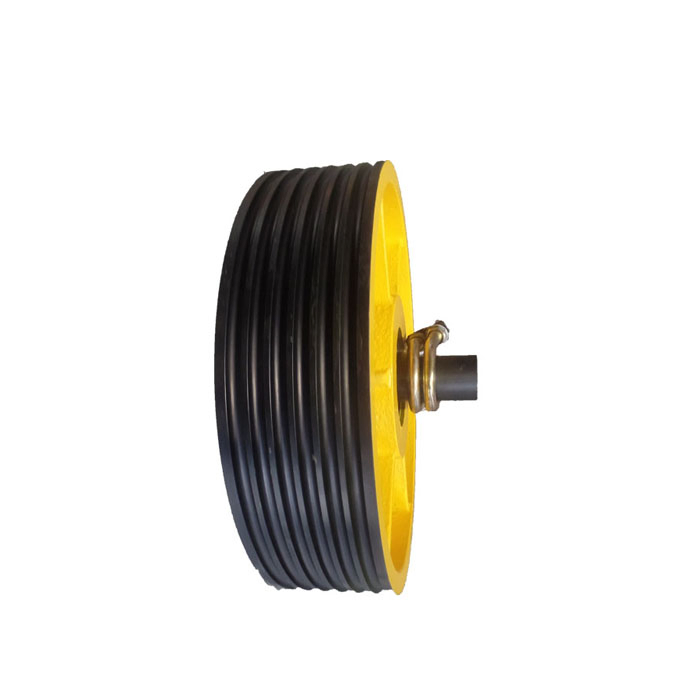

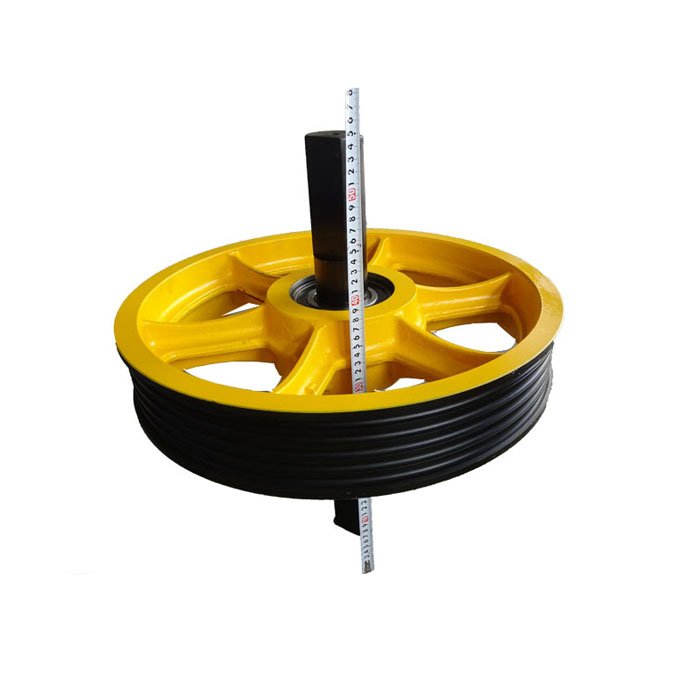

Elevator Deflector Sheave
If you are interested in our deflector sheave, welcome to contact us as below.
Model | Diameter | Aperture | Number | Rope | Slot Pitch | Thickness | Thickness | Rated | Bearing |
of slots | load | ||||||||
D | E | N | d | P | H | h | Q | ||
NV-240-01 | φ240 | 80 | 2 | 6.5 | 10 | 42 | 60 | ≤450KG | 6206 |
NV-240-02 | 80 | 3 | 6.5 | 10 | 42 | 80 | ≤800KG | 6208 | |
NV-240-03 | 90 | 4 | 6.5 | 10 | 52 | 80 | 6210 | ||
NV-240-04 | 110 | 5 | 6.5 | 10 | 65 | 80 | ≤1000KG | 6212 | |
NV-320-01 | φ320 | 110 | 3 | 8 | 12 | 52 | 80 | ≤630KG | 6212 |
NV-320-02 | 13 | ||||||||
NV-320-03 | 4 | 8 | 12 | 65 | 80 | ≤800KG | |||
NV-320-04 | 13 | ||||||||
NV-320-05 | 5 | 8 | 12 | 72 | 80 | ||||
NV-320-06 | 13 | ||||||||
NV-320-07 | 130 | 6 | 8 | 12 | 90 | 95 | ≤1600KG | 6312 | |
NV-320-08 | 13 | ||||||||
NV-320-09 | 140 | 7 | 8 | 12 | 104 | 95 | ≤1600KG | 6216 | |
NV-320-10 | 13 | ||||||||
NV-320-11 | 8 | 8 | 12 | 115 | 120 | ||||
NV-320-12 | 13 | ||||||||
NV-360-01 | φ360 | 110 | 3 | 8 | 12 | 52 | 80 | ≤630KG | 6212 |
NV-360-02 | 3 | 9 | 13 | ||||||
NV-360-03 | 4 | 8 | 12 | 65 | 80 | ||||
NV-360-04 | 4 | 9 | 13 | ||||||
NV-360-05 | 5 | 8 | 12 | 78 | 95 | ≤1000KG | |||
NV-360-06 | 5 | 9 | 13 | ||||||
NV-360-07 | 130 | 6 | 8 | 12 | 90 | 95 | ≤1600KG | 6312 | |
NV-360-08 | 6 | 9 | 13 | ||||||
NV-360-09 | 140 | 7 | 8 | 12 | 108 | 95 | ≤1500KG | 6313 | |
NV-360-10 | 7 | 9 | 13 | ||||||
NV-360-11 | 150 | 8 | 8 | 12 | 115 | 115 | 6314 | ||
NV-360-12 | 8 | 9 | 13 | ||||||
NV-400-01 | φ400 | 110 | 3 | 8 | 12 | 60 | 80 | ≤1000KG | 6212 |
NV-400-02 | 3 | 8 | 13 | ||||||
NV-400-03 | 3 | 10 | 15 | ||||||
NV-400-04 | 3 | 10 | 16 | ||||||
NV-400-05 | 4 | 8 | 12 | ||||||
NV-400-06 | 4 | 8 | 13 | ||||||
NV-400-07 | 4 | 10 | 15 | 70 | 95 | ||||
NV-400-08 | 4 | 10 | 16 | ||||||
NV-400-09 | 5 | 8 | 12 | ||||||
NV-400-10 | 5 | 8 | 13 | ||||||
NV-400-11 | φ130 | 5 | 10 | 15 | 90 | 95 | ≤1600KG | 6312 | |
NV-400-12 | 5 | 10 | 16 | ||||||
NV-400-13 | 6 | 8 | 12 | ||||||
NV-400-14 | 6 | 8 | 13 | ||||||
NV-400-15 | 6 | 10 | 15 | 105 | 95 | ||||
NV-400-16 | 6 | 10 | 16 | ||||||
NV-400-17 | 7 | 8 | 12 | ||||||
NV-400-18 | 7 | 8 | 13 | ||||||
NV-400-19 | φ140 | 7 | 10 | 15 | 124 | 120 | ≤2000KG | 6313 | |
NV-400-20 | 7 | 10 | 16 | ||||||
NV-400-21 | 8 | 8 | 12 | ||||||
NV-400-22 | 8 | 8 | 13 | ||||||
NV-400-23 | 8 | 10 | 15 | 140 | 120 | ||||
NV-400-24 | 8 | 10 | 16 | ||||||
NV-400-25 | 9 | 8 | 12 | ||||||
NV-400-26 | 9 | 8 | 13 | ||||||
NV-440-01 | φ440 | φ110 | 3 | 10 | 15 | 60 | 80 | ≤1000KG | 6212 |
NV-440-02 | 3 | 10 | 16 | ||||||
NV-440-03 | 4 | 8 | 12 | ||||||
NV-440-04 | 4 | 8 | 13 | ||||||
NV-440-05 | φ130 | 4 | 10 | 15 | 72 | 95 | ≤1600KG | 6312 | |
NV-440-06 | 4 | 10 | 16 | ||||||
NV-440-07 | 5 | 8 | 12 | ||||||
NV-440-08 | 5 | 8 | 13 | ||||||
NV-440-09 | 5 | 10 | 15 | 90 | 95 | ||||
NV-440-10 | 5 | 10 | 16 | ||||||
NV-440-11 | 6 | 8 | 12 | ||||||
NV-440-12 | 6 | 8 | 13 | ||||||
NV-440-13 | φ140 | 6 | 10 | 15 | 105 | 95 | ≤2000KG | 6313 | |
NV-440-14 | 6 | 10 | 16 | ||||||
NV-440-15 | 7 | 8 | 12 | ||||||
NV-440-16 | 7 | 8 | 13 | ||||||
NV-480-01 | φ480 | φ110 | 3 | 10 | 15 | 60 | 80 | ≤1000KG | 6212 |
NV-480-02 | 3 | 10 | 16 | ||||||
NV-480-03 | 4 | 8 | 12 | ||||||
NV-480-04 | 4 | 8 | 13 | ||||||
NV-480-05 | φ130 | 4 | 10 | 15 | 72 | 95 | ≤1600KG | 6312 | |
NV-480-06 | 4 | 10 | 16 | ||||||
NV-480-07 | 5 | 8 | 12 | ||||||
NV-480-08 | 5 | 8 | 13 | ||||||
NV-480-09 | 5 | 10 | 15 | 90 | 95 | ||||
NV-480-10 | 5 | 10 | 16 | ||||||
NV-480-11 | 6 | 8 | 12 | ||||||
NV-480-12 | 6 | 8 | 13 | ||||||
NV-480-13 | φ140 | 6 | 10 | 15 | 105 | 95 | ≤2000KG | 6313 | |
NV-480-14 | 6 | 10 | 16 | ||||||
NV-480-15 | 7 | 8 | 12 | ||||||
NV-480-16 | 7 | 8 | 13 | ||||||
NV-520-01 | φ520 | φ130 | 3 | 13 | 20 | 70 | 95 | ≤1000KG | 6312 |
NV-520-02 | 4 | 10 | 15 | ||||||
NV-520-03 | 4 | 10 | 16 | ||||||
NV-520-05 | 4 | 13 | 20 | 90 | 95 | ||||
NV-520-06 | 5 | 10 | 15 | ||||||
NV-520-07 | 5 | 10 | 16 | ||||||
NV-520-08 | 5 | 13 | 20 | 108 | 95 | ≤1600KG | 6312 | ||
NV-520-09 | 6 | 10 | 15 | ||||||
NV-520-10 | 6 | 10 | 16 | ||||||
NV-520-11 | φ140 | 6 | 13 | 20 | 128 | 120 | ≤2000KG | 6313 | |
NV-520-12 | 7 | 10 | 15 | ||||||
NV-520-13 | 7 | 10 | 16 | ||||||
NV-520-14 | φ150 | 8 | 13 | 20 | 168 | 148 | ≤3000KG | 6314 | |
NV-520-15 | 10 | 10 | 15 | ||||||
NV-520-16 | 10 | 10 | 16 | ||||||
NV-640-01 | φ640 | φ160 | 5 | 16 | 25 | 132 | 120 | ≤3000KG | 6315 |
NV-640-02 | 6 | 13 | 20 | ||||||
NV-640-03 | φ170 | 6 | 16 | 25 | 160 | 140 | ≤5000KG | 6316 | |
NV-640-04 | 7 | 13 | 20 |
