China Full Collective Elevator with Economical Cost Solution

Product Description

PASSENGER ELEVATOR (CONVENTIONAL)
BORAL is well-known for our versatile elevator design arrangements. We are capable of creating lasting elegant elevator designs to fit diversified construction ideas, which are based on a design called "neutral modern". Other thoughtful features of BORAL Elevators are:

Energy-Saving
Flexible Intelligent Control
Greater Reliability
Greater Riding Comfort
High Efficiency

BORAL BPM Elevators assemble each cutting-edge control technology in one, providing new solutions for time management efficiency. .

High speed BORAL elevator

The new High Speed / Rise Lift with max speed up to 4m/sec, HRS BORAL elevator is provided with
Energy Saving
Since several years ago we has started to invest towards the direction of energy efficient lifts. Series of energy measurements and tests carried out in BORAL model lifts, leads to a progressive reduction of energy consumption of our lifts.
HRS is fitted with several energy saving features such as the use of LEDs for the car lighting as also the standby mode function fitted in the lift controller.
Standby mode function is designed to automatically reduce energy consumption after some minutes of idleness of the lift. During standby mode the operating panels, the inverter as also parts of the controller goes to energy saving mode, yet remain ready to constantly monitor any lift calls. Regeneration system is applied reducing energy consumption up to 60%.
Ride Quality
As all BORAL elevators, HRS appears an impressive ride behavior. Series of ride quality measurements according to ISO 18738 carried out in our test towers allowed a progressive improvement of the ride comfort. Noise level as also car vibrations values have been minimized, so that the passenger to have a really 'smooth' experience during travel.
Design

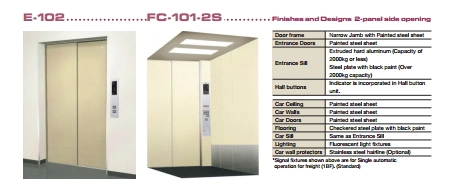

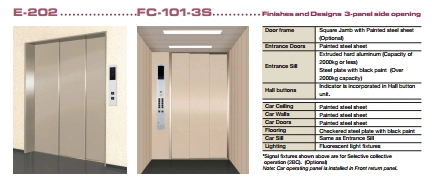

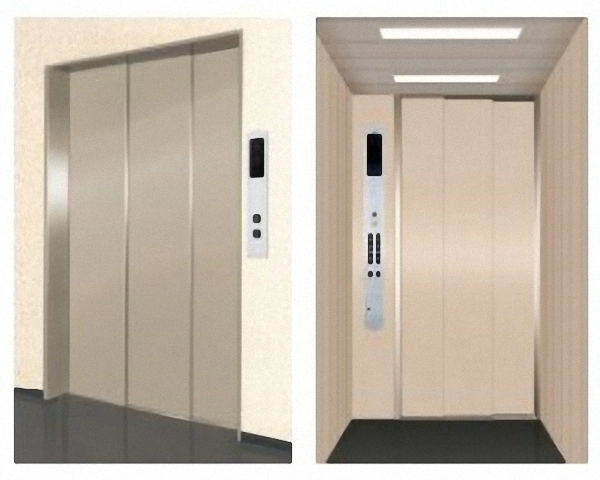

HRS BORAL Lift is offered with several cabin, COP-LOP and buttons designs, which is the result of BORAL cooperation with the worldwide famous industrial designer.
Isolated Roller Guide Shoes
The isolated roller guide works as a spring element, so that the vibrations are limited to a minimum. It guides the car between the guide rails within the allowance determined by the safety gear device and the door coupler.
Isolated roller guide shoes are distinguished by its spring system, which offers enormous advantages over non-spring loaded guides. The rollers always contact the rail closely regardless of the type and direction of load.
The rollers have high quality and unusually long service life due to the spring system and the permanent contact to the guide-rail.

Innovative services

ECO design ISO 14006:2011
Destination Control LTP Call Management System
Remote Lift Monitoring
Advanced methods used for energy consumption reduction

The Remote Lift Monitoring system is often required for buildings
with multiple lifts in order to provide a better management.
Features:
Security password
Real time monitoring of the lift status
Remote travel and door commands
Parameter viewing and programming
Error log display and statistics
Clock control travel management
Full Collective Elevator with Economical Cost Solution

Full Collective Elevator with Economical Cost Solution

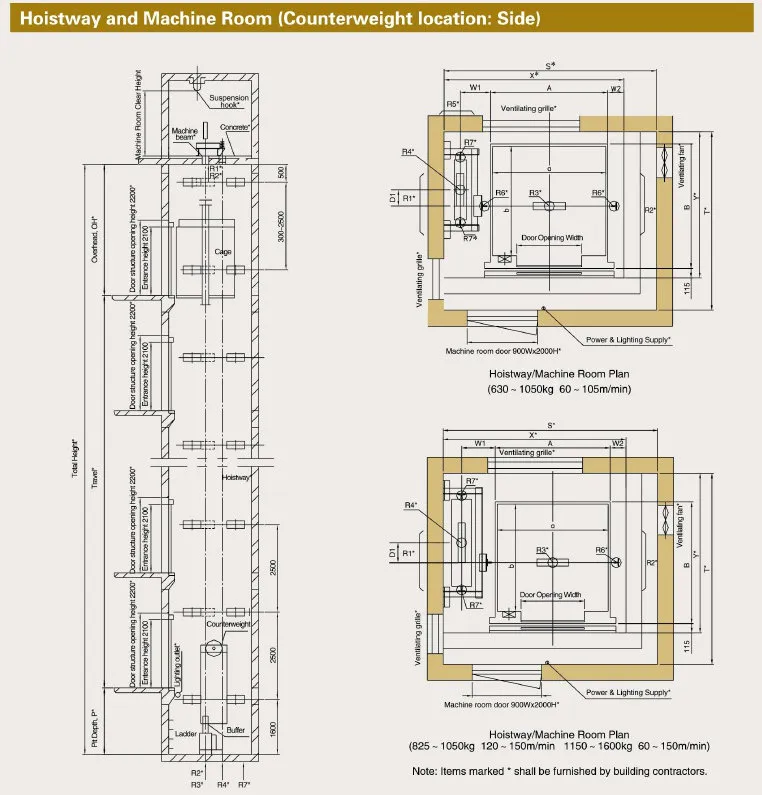

Dimensions and Reactions ( counter weight location: side)
load (kg)	Person No.	Speed (m/s)	Car (mm)		Door opening (mm)		Hoistway (mm)	Machine Room (mm)	Machine room reaction (KN)			Pit Reaction (KN)
			a x b	AxB	Type	width	X x Y	S x T	R1	R2	R5	R3	R4	R5	R6
630	8	1.0	1400 x1100	1450 x 1285	2P-CO	800	2225 x1550	2225 x 1750	47.4	29.4	3	95	82	29	3
		1.5							50.5	31.3	3	101	88	34	5
		1.75
800	10	1.0	1400 X1350	1450 X1535	2P-CO	800	2225 x1800	2225 x 1800	55.5	34.6	3	113	95	37	3
		1.5							59.5	371	3	120	103	44	5
		1.75
		2.0					2340 x1850	2340 x 2000	111	81	~	203	182	71	12
		2.5
1000	13	1.0	1600 X 1500	1650 X 1685	2P-CO	900	2450 x1950	2450 x 1950	67.6	40.2	3	135	113	42	3
		1.5							70.4	42.1	3	145	123	50	5
		1.75
		2.0					2525 x1950	2525 x 2100	121	84	~	213	182	76	12
		2.5
1350	17	1.0	2000 X 1500	2050 X 1685	2P-CO	1100	2950 x1950	2950 x 2150	126	86	~	201	171	66	11
		1.5							136	91	~	233	202	76	15
		1.75
		2.0							141	96	~	243	212	91	16
		2.5
1600	20	1.0	2000 X 1750	2050 X 1935	2P-CO	1100	2950 x2200	2950 x 2300	131	91	~	211	181	71	11
		1.5							141	96	~	243	212	81	15
		1.75
		2.0							145	99	~	263	222	96	16
		2.5

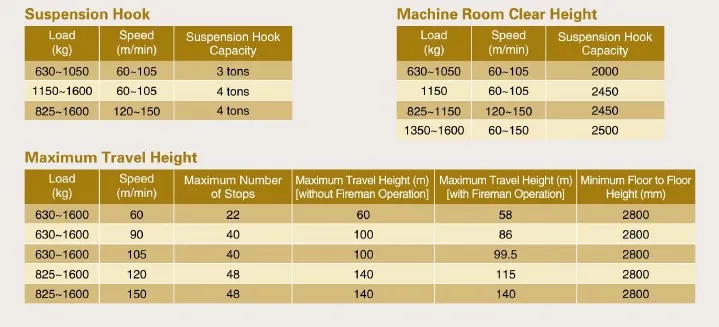

Load (kg)	Speed ( m/s)	Minimum overhead , OH (mm)		Minimum pit depth, P (mm)
		Travel ≤ 70m	Travel > 70m	Travel ≤ 70m	Travel > 70m
630-1000	1.0	4350		1450
	1.5	4450		1450	1650
	1.75	4550		1500	1700
800-1000	2.0	4800		1800
	2.5	5100		1950
1350 1600	1.0	4750		1650
	1.5	4750	4850	1700	1900
	1.75	4800	5000	1800	2000
	2.0	5000		2000
	2.5	5250		2150

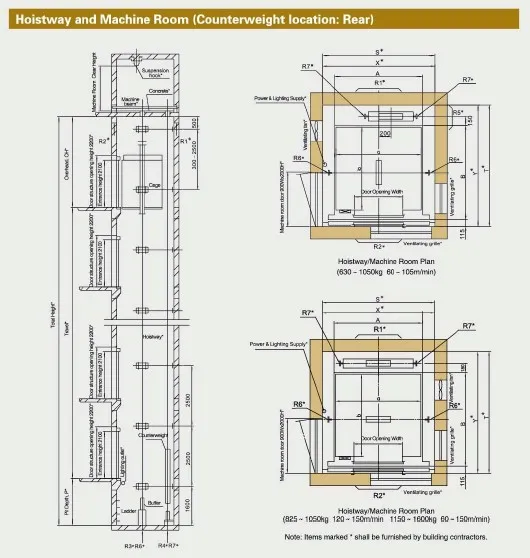

Dimensions and Reactions ( counter weight location: side)
load (kg)	Person No.	Speed (m/s)	Car (mm)		Door opening (mm)		Hoistway (mm)	Machine Room (mm)	Machine room reaction (KN)			Pit Reaction (KN)
			a x b	AxB	Type	width	X x Y	S x T	R1	R2	R5	R3	R4	R5	R6
630	8	1.0	1400 x1100	1450 x 1285	2P-CO	800	1850 x1750	1850 x 1750	38.9	27.7	2.5	95	82	29	3
		1.5							41.2	28.4	2.5	101	88	34	5
		1.75
800	10	1.0	1400 X1350	1450 X1535	2P-CO	800	1850 x2000	1850 x 2000	45.3	29.8	2.5	113	95	37	3
		1.5							47.6	31.4	2.5	120	103	44	5
		1.75
		2.0					1900 x2050	2200 x 2050	111	81	~	203	182	71	12
		2.5
1000	13	1.0	1600 X 1500	1650 X 1685	2P-CO	900	2100x2150	2100 x 2150	51.7	34.9	2.5	135	113	42	3
		1.5							54.6	36.7	2.5	145	123	50	5
		1.75
		2.0					2100 x2200	2300x 2200	116	86	~	213	182	76	12
		2.5
1350	17	1.0	2000 X 1500	2050 X 1685	2P-CO	1100	2550 x2200	2550 x 2200	116	91	~	201	171	66	11
		1.5							131	96	~	233	202	76	15
		1.75
		2.0							136	101	~	243	212	91	16
		2.5
1600	20	1.0	2000 X 1750	2050 X 1935	2P-CO	1100	2550 x2450	2550 x 2450	126	96	~	211	181	71	11
		1.5							136	101	~	243	212	81	15
		1.75
		2.0							141	101	~	263	222	96	16
		2.5

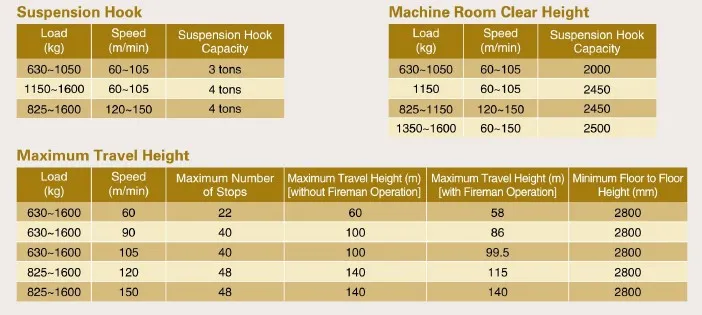

Load (kg)	Speed ( m/s)	Minimum overhead , OH (mm)		Minimum pit depth, P (mm)
		Travel ≤ 70m	Travel > 70m	Travel ≤ 70m	Travel > 70m
630-1000	1.0	4350		1450
	1.5	4450		1450	1650
	1.75	4550		1500	1700
800-1000	2.0	4850		1800
	2.5	5100		1950
1350 1600	1.0	4750		1650
	1.5	4750	4850	1700	1900
	1.75	4800	5000	1800	2000
	2.0	5000		2000
	2.5	5250		2150
