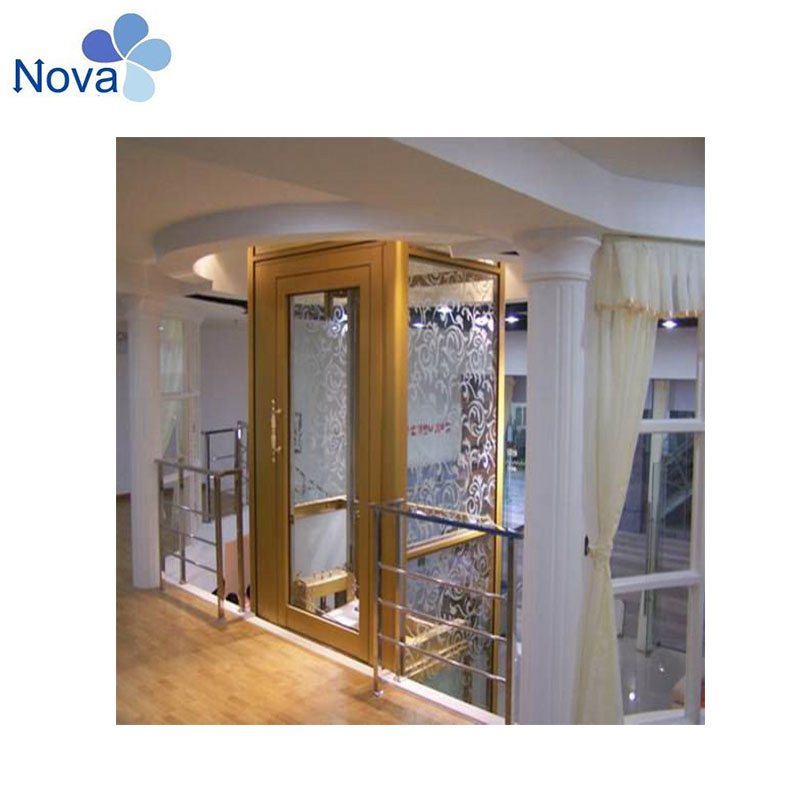

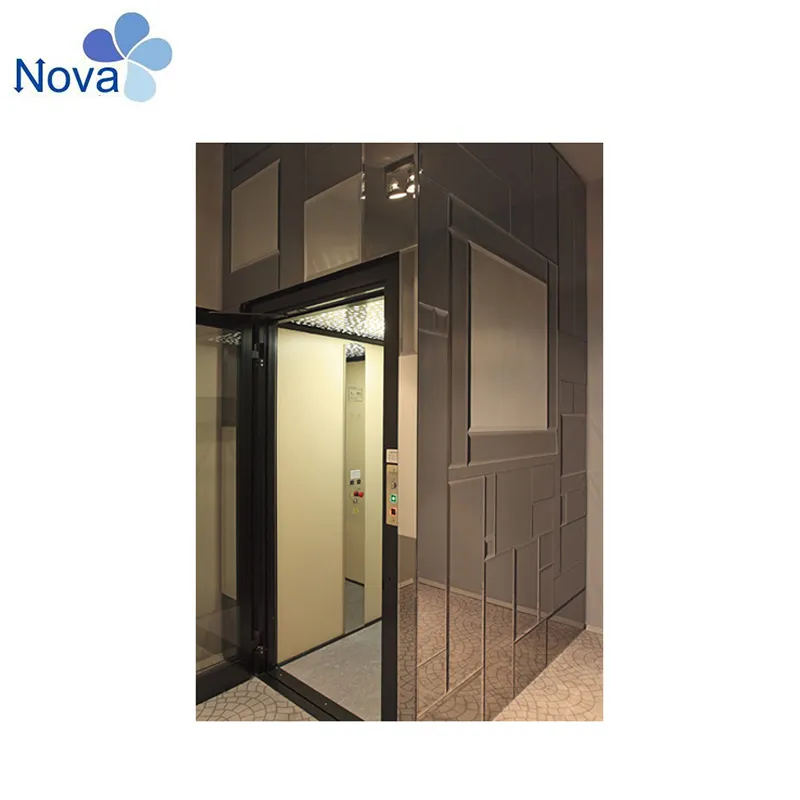

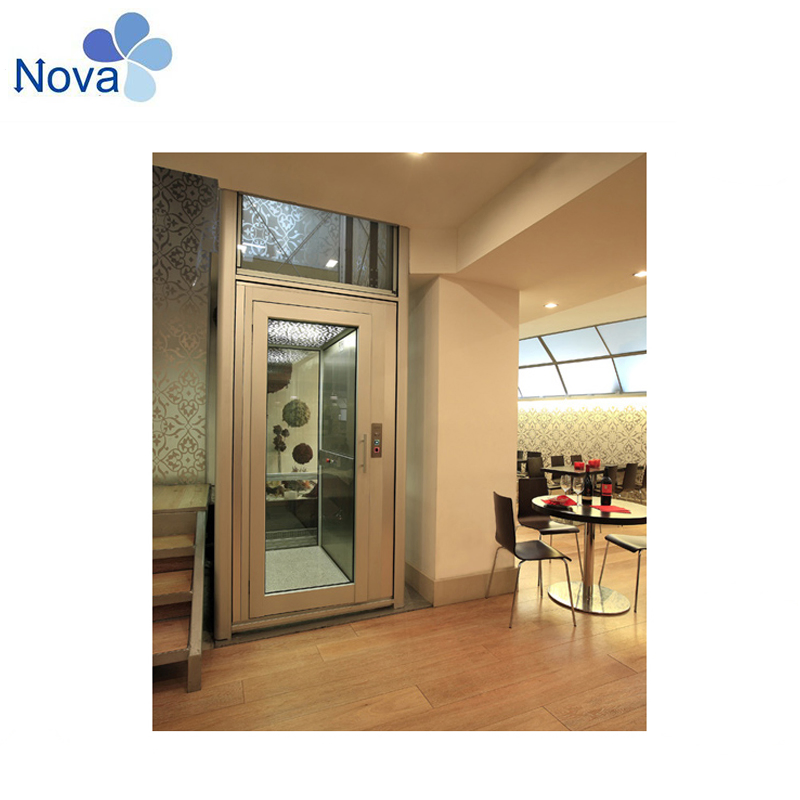

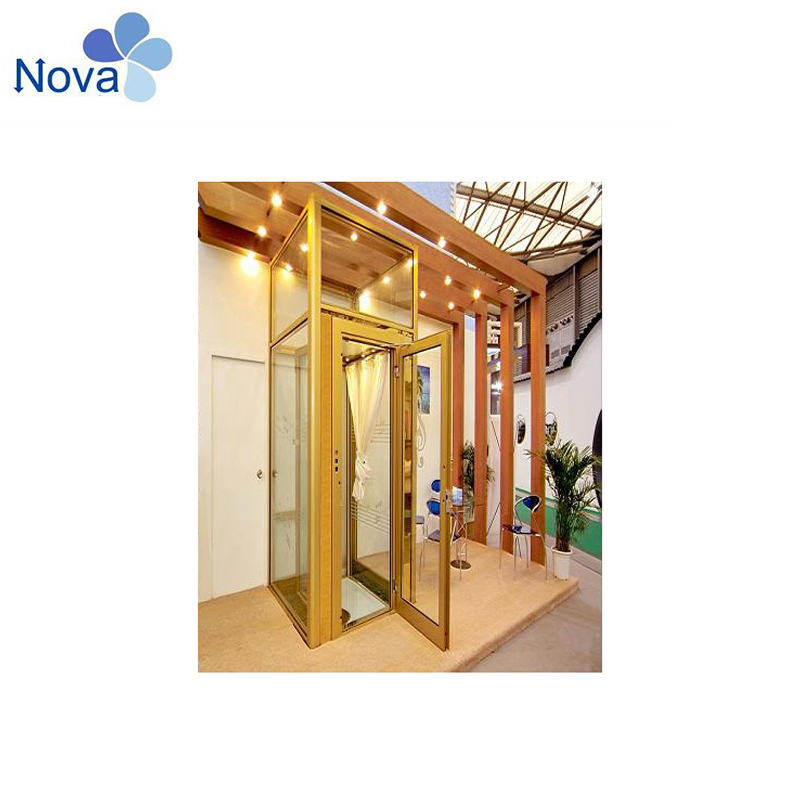

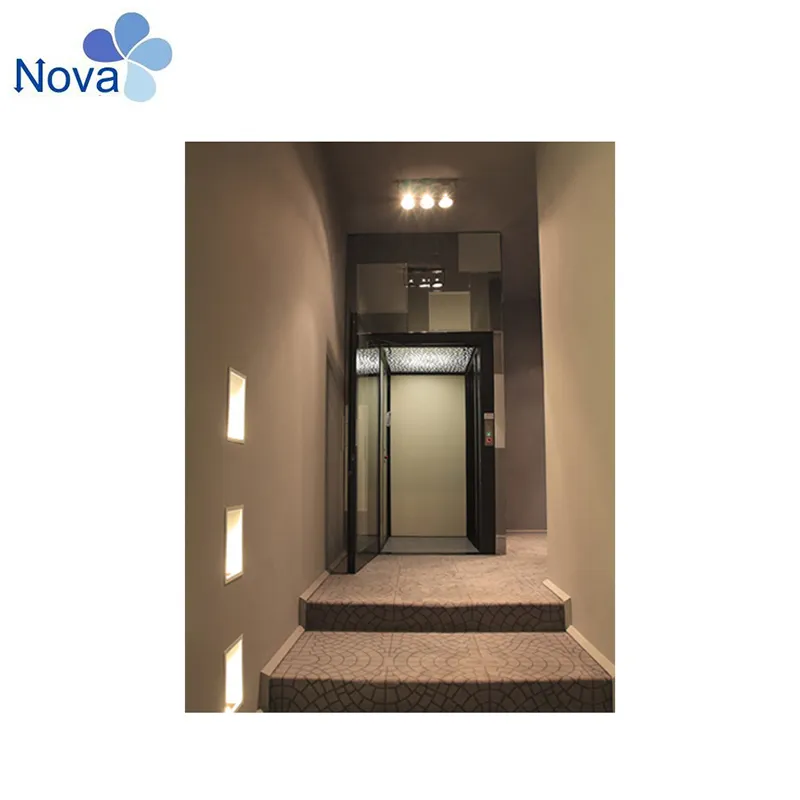

3 Persons 250kgs Villa Elevator Home Elevator Home Lift
NOVA is a professional elevator manufacturer in China for years. We manufacture passenger/panoramic/medical/cargo/car elevator and dumbwaiter. With advanced technology, good quality and sincere cooperation, we have business with so many projects in China and many foreign countries. Capacity: 250~400......
Send Inquiry
Product Description
NOVA is a professional elevator manufacturer in China for years. We manufacture passenger/panoramic/medical/cargo/car elevator and dumbwaiter. With advanced technology, good quality and sincere cooperation, we have business with so many projects in China and many foreign countries.
Capacity: 250~400kg Speed: 0.5m/s-1.0m/s
Main function| Standard function | ||||
| 1 | Inspection operation | 29 | Over speed protection | |
| 2 | Slow speed running | 30 | Contact protection for brake switches | |
| 3 | Automatic door opening time adjustment | 31 | Interphone communication | |
| 4 | Full load bypass | 32 | Wheeling protection | |
| 5 | Automatic turn off lighting and fun | 33 | Alarm bell | |
| 6 | Automatic return to home landing | 34 | Emergency lighting | |
| 7 | Door re-closing | 35 | Level switch protection | |
| 8 | Error recording | 36 | False call canceling | |
| 9 | Hoist way self learning | 37 | Automatic reversal call canceling | |
| 10 | Automatic door opening | 38 | Floor display directional setup | |
| 11 | Attendant service | 39 | Isolate running | |
| 12 | Bypass operation | 40 | Dot matrix floor indicator | |
| 13 | Automatic correction of floor position signal | 41 | Rolling display of running direction | |
| 14 | Lift locking | 42 | CAN communication protection | |
| 15 | Protection of door lock up outside dooor area | 43 | Arrival gong | |
| 16 | Infrared light curtain protection | 44 | Emergency return in case of fire | |
| 17 | Over load protection | 45 | Main control protection | |
| 18 | Reversal runing protection | 46 | Main control CPU WDT protection | |
| 19 | Anti-skip protection | 47 | Discretional setup of service floor | |
| 20 | Anti terminal switches protection | 48 | Test running | |
| 21 | Anti-terminal over running protection | 49 | Clock control | |
| 22 | Phrase protection | 50 | Direct landing | |
| 23 | Contactor protection | 51 | Load weighting device | |
| 24 | Failure analysis of shaft self learn | 52 | Full collective control | |
| 25 | Motor temperature protection | 53 | Door opening button (external) | |
| 26 | Door opening failure protection | 54 | Door opening button (internal) | |
| 27 | Protection for door lock short circuit | 55 | Fire running function | |
| 28 | Door lock failure for brake switches | |||
| Optional function | ||||
| 1 | Open the door in advance | 10 | Remote control | |
| 2 | Direct parking | 11 | Camera function in the car | |
| 3 | Group control | 12 | Voice announcer | |
| 4 | Duplex control | 13 | Car assistant operation box | |
| 5 | On-duty peak service | 14 | Operation box for the handicapped | |
| 6 | Off-duty peak service | 15 | Intelligent calling service | |
| 7 | Door open time extending | 16 | IC card control function | |
| 8 | Car arrival gong | 17 | Leveling when power failure | |
| 9 | Remote monitor | |||
| Our reference specifiction: | ||||||||||
| Home elevator specifications | ||||||||||
| No. of persons | Rated capacity (kg) | Rated speed (m/s) | Car dimension | Door dimension(DW*DH)mm | Shaft inside dimension | Max traveling height(m) | Max number of stops | Power supply | ||
| W*D(mm) | Automatic doors | W*D(mm) | Pit depth | OH | ||||||
| 4 | 320 | 0.4 | 900*1200 | 700*2000 | 1600*1650 | 500 | 3200 | 12 | 5 | Single phase 220V 50HZ or three-phase 380V 50HZ |
| 5 | 400 | 1200*1200 | 1900*1650 | |||||||
Note: the parameter table shows the standard design of our small machine room passenger elevator. We also can design elevator for you with your parameter.
