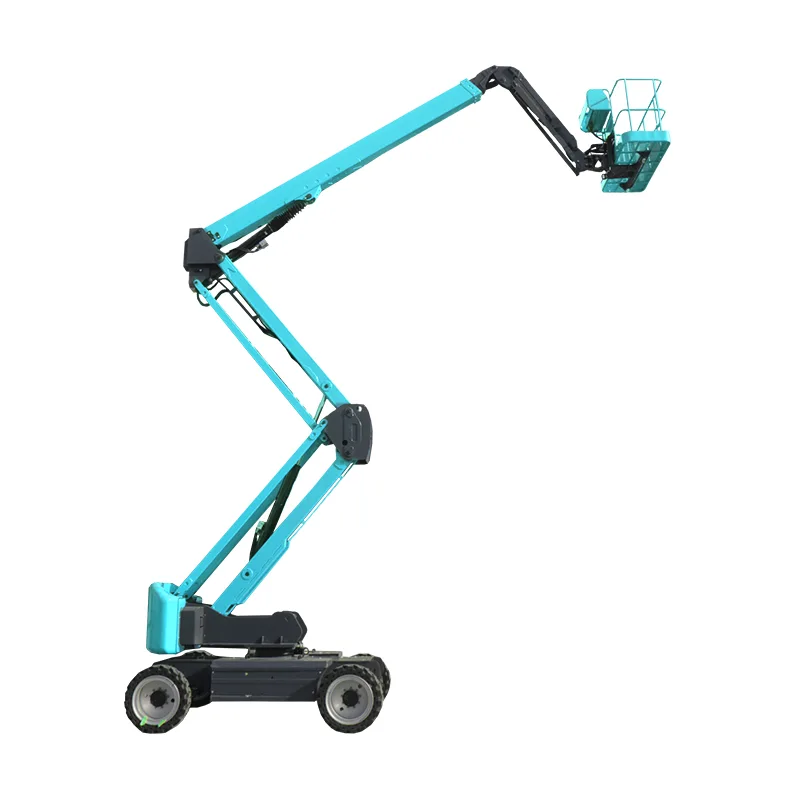

What Maintenance Does a 20m Electric Articulating Boom Lift Require Annually

For fleet managers, safety officers, and equipment operators, the annual maintenance schedule of a 20m Electric Articulating Boom Lift is not a suggestion—it is a operational necessity. Unlike conventional diesel-powered units, an electric machine demands a hybrid approach: traditional structural inspections plus high-voltage system diagnostics. At Foren, we have compiled over a decade of field data to produce this definitive annual service blueprint. This guide ensures your 20m Electric Articulating Boom Lift remains compliant, efficient, and safe for every job site, whether indoors or outdoors.

The Annual Maintenance Checklist (Professional Edition)

Annual maintenance goes beyond the daily pre-start inspection. It is a comprehensive, system-by-system audit. Below is the Foren-recommended procedure, structured by priority.

1. Hydraulic System Overhaul

• Fluid Replacement: Drain and replace hydraulic oil every 12 months or 1,000 operating hours (whichever comes first). Use only ISO VG 32 or 46 anti-wear fluids.

• Filter Elements: Replace the return-line filter and pilot-line filter simultaneously. Never clean and reuse—this compromises micron ratings.

• Cylinder Drift Test: Extend the boom to full horizontal reach and measure drift over 15 minutes. Maximum allowable drift: 2.5 cm. Any excess indicates worn piston seals.

2. Electrical and Battery Management

• Battery Equalization Charge: Perform a 24-hour equalization charge on the 48V lithium or lead-acid bank to balance cell voltages.

• Cable Insulation Resistance: Test all high-voltage cables (including the pendant controller cable) at 500V DC. Resistance must exceed 2 MΩ.

• Emergency Stop Redundancy: Verify that both ground and platform E-stop buttons interrupt all motion functions within 0.5 seconds.

3. Structural and Articulation Joints

• Pin and Bushing Wear: Measure the clearance at each articulation pivot point. Standard tolerance: ≤ 0.8 mm radial play.

• Torque Check: Retorque all turntable mounting bolts to 680 N·m (specific to Foren models), using a calibrated hydraulic torque wrench.

• Boom Wear Pads: Inspect the sliding wear pads on each telescopic section. Replace any pad worn below 5 mm thickness.

4. Safety and Emergency Systems

• Load Sensing Calibration: Calibrate the platform load sensor at 0%, 50%, 100%, and 110% of rated capacity (300 kg for standard 20m Electric Articulating Boom Lift configurations).

• Tilt Alarm Test: Activate the tilt sensor with a 5° inclination in both directions. Audible and visual alarms must trigger immediately.

• Secondary Guarding: Check the secondary boom-lowering valve (manual override) for smooth operation without power assist.

Annual Maintenance Cost & Time Estimate

The table below outlines the average annual service investment for a 20m Electric Articulating Boom Lift, based on Foren service center data (2025–2026).

20m Electric Articulating Boom Lift FAQ – Expert Answers

Q1: Can I extend the annual hydraulic oil change interval if my 20m Electric Articulating Boom Lift operates only indoors with low hours?

A1: No. Foren engineering tests confirm that hydraulic oil degradation is driven by time (moisture absorption and oxidation) more than by hours in electric units. Even with only 200 operating hours per year, the oil must be replaced annually. Water contamination above 0.2% reduces pump lifespan by 40%. Always replace the oil at 12-month intervals, regardless of hour meter readings.

Q2: What is the most commonly overlooked annual check on a 20m Electric Articulating Boom Lift that leads to unexpected breakdowns?

A2: The turntable slewing ring bolt torque and the condition of the swing drive gear grease. Over 65% of service calls for Foren electric booms in their second year trace back to loose turntable bolts (below 600 N·m) or dried-out grease in the swing reduction gearbox. Annual inspection must include removing the turntable cover, cleaning old grease, applying fresh EP-2 lithium grease, and re-torquing bolts in a star pattern. This single step prevents costly structural cracking.

Q3: Does the annual maintenance for a 20m Electric Articulating Boom Lift require a certified electrician, or can a general mechanic perform it?

A3: A two-person team is required: one certified electrician (for battery, motor, and controller diagnostics) and one experienced hydraulic mechanic (for cylinders, hoses, and valves). Foren recommends that the electrical insulation test (500V DC) and the load sensor calibration be performed only by a technician with IPAF or OEM-specific training. General mechanics can handle structural pin measurements and wear pad replacements, but the high-voltage system requires formal certification to avoid arc flash hazards and calibration errors.

Proactive Spare Parts Strategy

To minimize downtime during annual service, Foren advises stocking the following consumables for each 20m Electric Articulating Boom Lift in your fleet:

• Return-line hydraulic filter (x2)

• Pilot oil filter (x2)

• Boom wear pad set (x4)

• Platform control joystick boot (seals out moisture)

• Emergency stop button set (24V DC)

Having these parts on-site before the annual inspection can reduce total service downtime from 3 days to just 1.5 days.

When to Call a Certified Service Partner

Annual maintenance is not a DIY task for untrained crews. The calibration of the anti-two-block system, the tilt sensor, and the load limiter requires proprietary diagnostic software and factory-set parameters. Foren operates a global network of authorized service centers equipped with genuine parts and updated firmware.

Do not wait for the annual inspection light to flash. Schedule your 20m Electric Articulating Boom Lift service at least 6–8 weeks before your peak season to secure technician availability.
