Garage Freight Elevator Car Cargo Lift with Fast Speed Elevator
Website: joyliveelevator.en.made-in-china.comProduct DescriptionGarage freight elevator car cargo lift with fast speed elevatorFreight elevator have high performance elevator parts, permanent magnet synchronous drive and intelligent door system, safe and reliable. Freight elevator permanent magnet s......
Send Inquiry
Product Description
Product Description
Garage freight elevator car cargo lift with fast speed elevator
Freight elevator have high performance elevator parts, permanent magnet synchronous drive and intelligent door system, safe and reliable.
Freight elevator permanent magnet synchronous traction machine,smaller volume but higher efficiency, saving more space for the headroom.
Freight elevator highest safty standard, to ensure passenger safty.
Freight elevator multiple customized for transportation arrangement and structure for matching design style of house.
Garage freight elevator car cargo lift with fast speed elevator

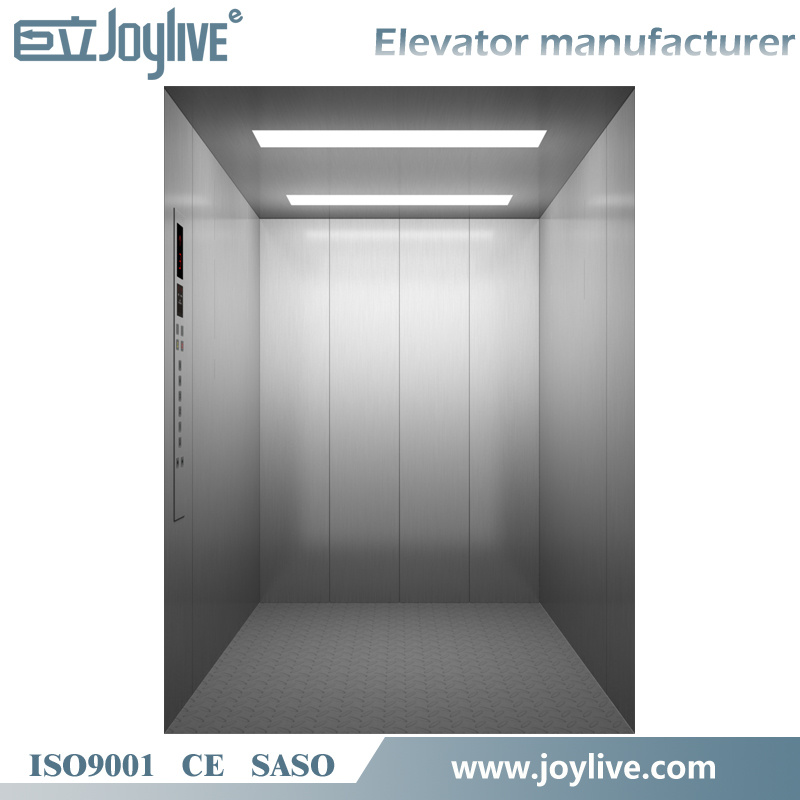

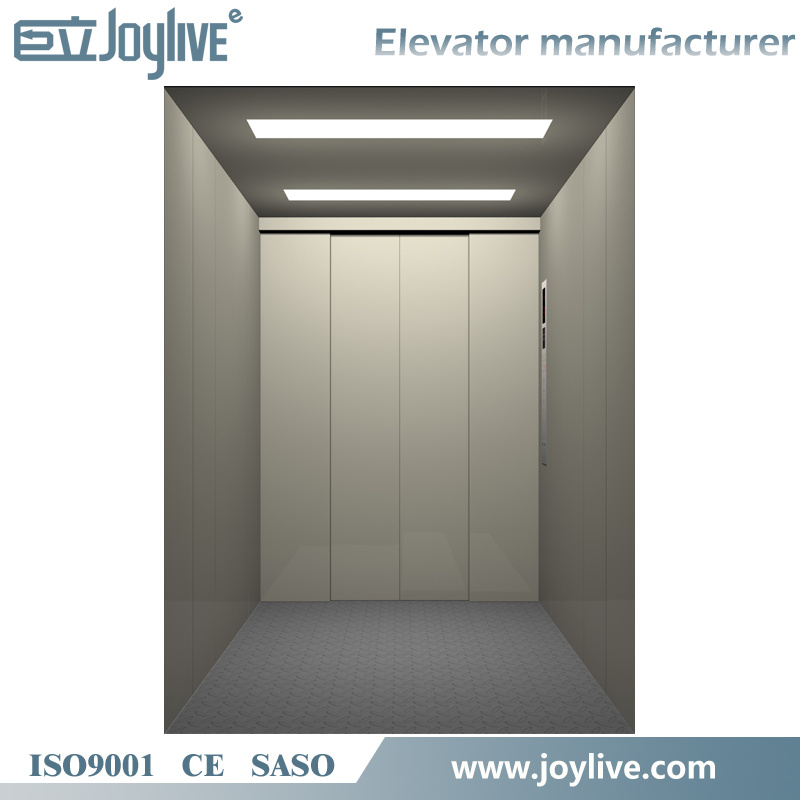

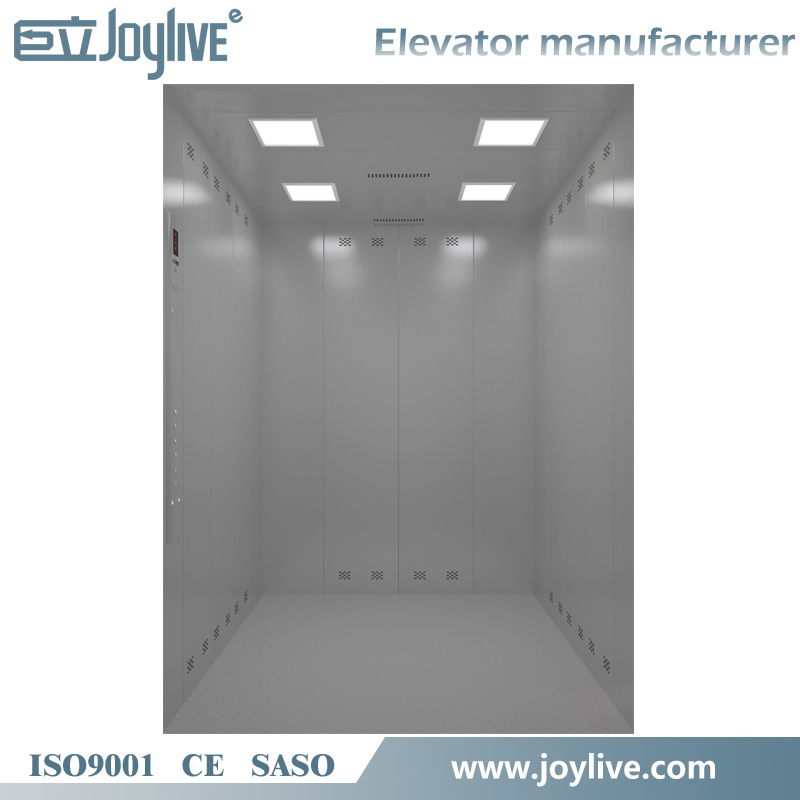

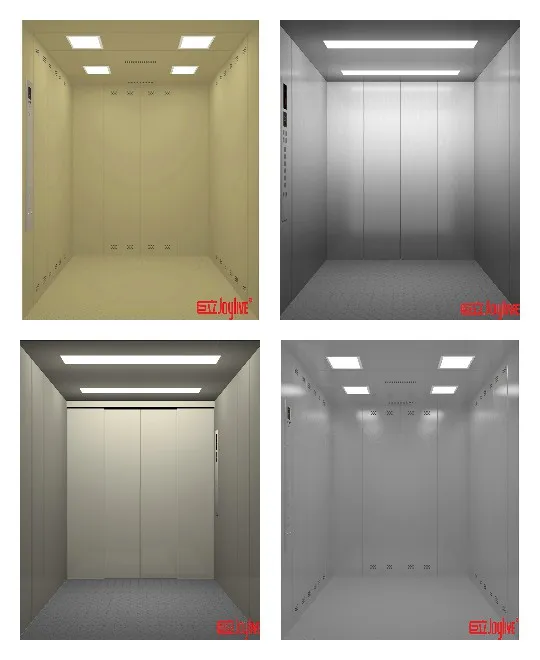

Cabin
Decoration
| Ceiling | Hairline stainless steel, white acrylic+LED |
| Cabin panel | Hairline stainless steel Mirror Stainless Steel |
| COP | Hairline stainless steel |
| Handrail | Hairline stainless steel |
| Flooring | Marble |
Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Dimension CW*CD(mm) | Door Opening Dimension EW*EH(mm) | Standard Shaft Dimension HW*HD(mm) | Max Shaft Dimension HW*HD(mm) | Standard Pit Depth Pd(mm) | Standard top floor height Th(mm) |
| 1000 | 0.5 | 1400×1700 | 1200×2100 | 2250×2100 | 3600×3600 | 1500 | 4300 |
| 1 | 1100×2100 | 2100×2350 | 3600×2900 | 1500 | |||
| 1600 | 0.5 | 1300×1800 | 1500×2100 | 2650×2750 | 4300×3600 | 1500 | 4300 |
| 1 | |||||||
| 1600 | 0.5 | 1500×2300 | 1500×2100 | 2650×2900 | 4300×2900 | 1500 | 4300 |
| 1 | |||||||
| 2000 | 0.5 | 1700×2400 | 1700×2100 | 2900×2900 | 4800×4000 | 1500 | 4300 |
| 1 | |||||||
| 2000 | 0.5 | 1700×2400 | 1700×2100 | 2900×2900 | 4800×3400 | 1500 | 4300 |
| 1 | |||||||
| 2500 | 0.5 | 2000×2500 | 2000×2100 | 3350×3000 | 5300×4500 | 1500 | 4300 |
| 1 | |||||||
| 2500 | 0.5 | 2000×2500 | 2000×2100 | 3350×3100 | 5300×3900 | 1500 | 4300 |
| 1 | |||||||
| 3000 | 0.5 | 2000×2800 | 2000×2100 | 3350×3300 | 5300×4800 | 1500 | 4300 |
| 1 | |||||||
| 3000 | 0.5 | 2000×2800 | 2000×2100 | 3350×3400 | 5300×4200 | 1500 | 4300 |
| 1 | |||||||
| 4000 | 0.25 | 2000×2800 | 2200×3300 | 3800×3800 | 5500×5000 | 1600 | 4800 |
| 0.5 | |||||||
| 4000 | 0.25 | 2000×2800 | 2200×3300 | 3800×3900 | 5500×4400 | 1600 | 4800 |
| 0.5 | |||||||
| 5000 | 0.25 | 2000×2800 | 2500×3500 | 4150×4000 | 6200×5900 | 1600 | 4800 |
| 0.5 | |||||||
| 5000 | 0.25 | 2000×2800 | 2500×3500 | 4150×4100 | 6200×5300 | 1600 | 4800 |
| 0.5 |
Elevator Parts
Sending me Inquiry

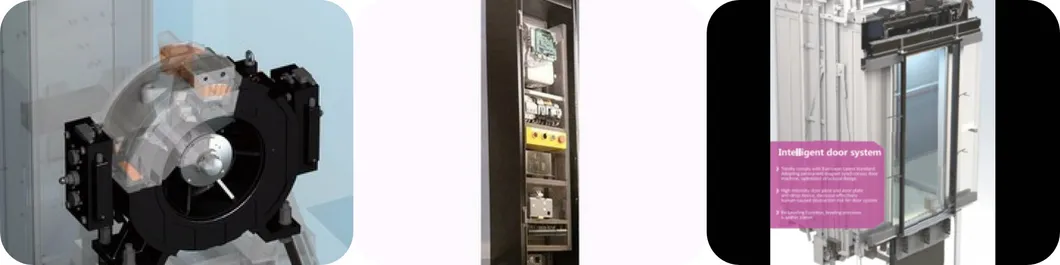

Joylive Traction Machine
Product Name:Garage freight elevator car cargo lift with fast speed elevator
Integrated and ultra thin design for hub and spoke.
More flexible allocation for traction machine.
Joint test with international authority, ensure good quality of products.
Brakeage Self-Test Technology, ensure reliable brake action.
Cube Pro
Product Name:Garage freight elevator car cargo lift with fast speed elevator
Intelligent control system.
Modularization cabinet design configuration .
Adopting CAN-BUS to transmit data between control accurancy and reliability.
One-click hoist self-learning system.
Cary advanced internet of things intelligent system.
Remote online technology service.
Intelligent door system
Product Name:Garage freight elevator car cargo lift with fast speed elevator
Totally comply with European Latest Standard.Adopting permanent magnet synchronous door machine, optimized structural design.High-intensity door plate and door plate anti-drop device, decrease effectively
human-caused destruction risk for door system Re-Leveling Function, leveling precision is within 10mm.
5000kg HYDRAULIC car GOODS lift elevator
Packing & Delivery
Packing Details :
Garage freight elevator car cargo lift with fast speed elevator
Fumigated Wooden Case or Fumigation-free Plywood or Case for Outdoor home mini elevator lift machine
Warehouse Goods Freight Elevator with Big Load
Home Elevator Lift With Stable System For Office Building Using
Delivery Details : within 20 days after the payment.
Product Name:Garage freight elevator car cargo lift with fast speed elevator
5000kg HYDRAULIC car GOODS lift elevator
Product Name:Garage freight elevator car cargo lift with fast speed elevator

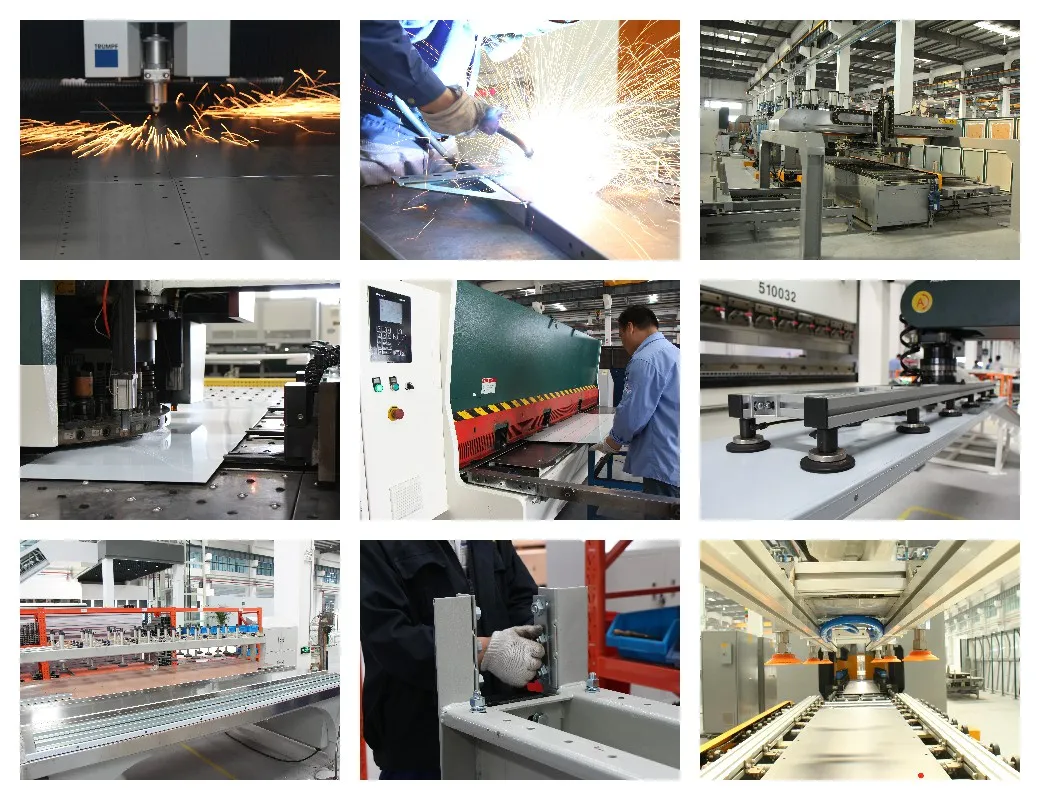

Passenger Elevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found precision detection experimental center.
Passenger Elevator followed international QC management to elevator production, we set rigorous manufacturing standards of Hosting Elevator to make sure every elevator remarkable.
Multiply Products
Passenger Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.
Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.
Safety First
High Safety Standard ensured for any Accidents occurs.ISO9001:2000 quality and CE marking certification systems.
5000kg HYDRAULIC car GOODS lift elevator
Sending me Inquiry
Our Exhibition
Our Cetification
About Joylive
Joylive Elevator Co., Ltd. was founded in Kunshan city, Jiangsu province in 2002.
After more than a decade'sdevelopment,Joylive has become a famous brand with the enterprise
conception of "Intelligence, Environmental-Friendliness and Supreme Service" in the industry.
We have innovated in series of product solutions and services with unique characteristics:
Joylife-- Residential Passenger Elevator
Joycity- Commercial Passenger Elevator
Joyvilla-- Villa Customized Elevator
Joylogi-- Freight Elevator for Logistics
Joylive-- Hospital Elevator
Joylive-- Escalator and Moving walkingGarage freight elevator car cargo lift with fast speed elevator
