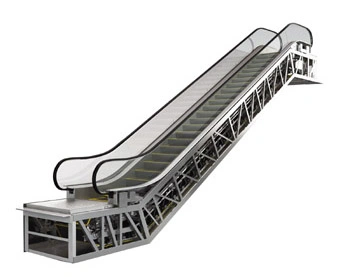

GRE20 escalatorGRE20 series of escalator with 7.2-meter maximum rise can operate normally in outdoor environment.Feature:Super-consciousness aesthetic design meets the characteristics of human physiology.Streamlined handrail system in stainless steel reflects noble style of western Europe with its 1......
| Application | Indoor. 16-hr operation daily |
| Height (m) | ≤ 7.2(6) |
| Inclination (° ) | 30(35) |
| (mm) Step width | 600/800/1000 |
| Horizontal steps | 2/2 3/3(Only for 30° ) |
| Speed(m/s) | 0.5 |
| Capacity (per. /h) | 4500/6750/9000 |
| Main power | 380V/50Hz/3P |
| Balustrade | Tempered glass(10mm) |
| Handrail bracket | Stainless steel |
| Handrail | Black |
| Balustrade height(mm) | 900 |
| Inner & outer decking | Hairline St. St. |
| Skirting | Wear resistant coating steel sheet |

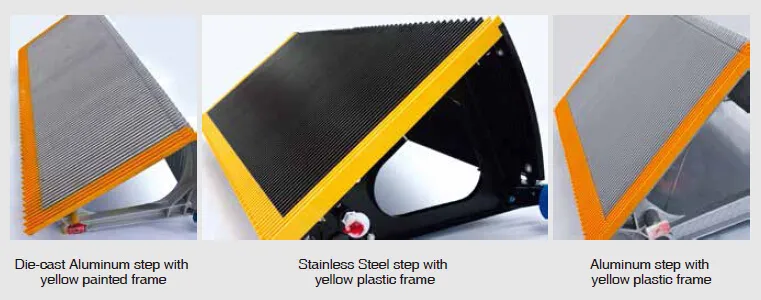

| Step | Stainless steel |
| Landing plate | Stainless steel (anti-sliding) |
| illumination | lighting under upper & lower landing steps |
| Indicator | Failure code indicator on control cabinet |
| Operation | Emergency stop button Key switch Inspection operation |
| Application | Semi-outdoor/outdoor. 16-hr operation daily |
| Handrail bracket | Aluminum profile |
| Handrail | Green, red, blue, yellow |
| Balustrade height | 1000mm |

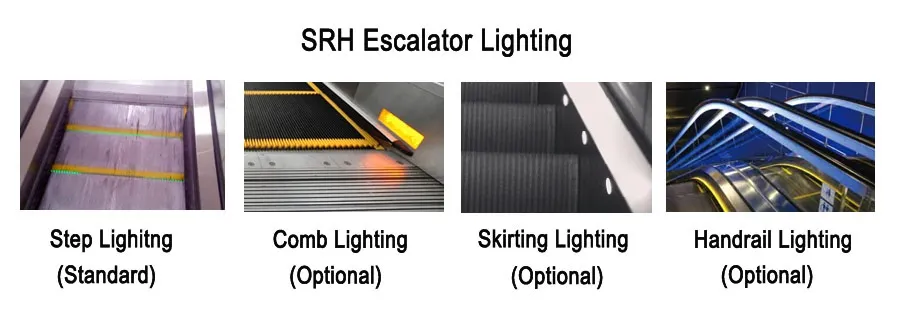

| illumination | Skirting lighting |
| Comb lighting | |
| Monitor | Handrail speed monitor |
| Handrail break monitor | |
| Indicator | Indicator on outer decking |
| Direction indicator | Running direction indicator on outer decking |
| Step(escalator) | One-piece aluminum |
| Skirting | Hairline St. St. |
| Landing plate | Aluminum alloy (anti-sliding) |
| Energy control | VVVF |
| Lubrication | Automatic lubrication / electric lubrication |
| External cladding | Hairline St. St. / Painted steel /Glass/Mirror st. st. |
| Static electricity protection of step (pallet) | Eliminate static electricity raised from running of the steps (pallets). | standard |
| Static electricity protection of handrail | Eliminate static electricity raised from running of the handrail. | standard |
| Emergency stop button on entrance | Push the emergency stop button to stop the escalator (moving walk) against emergency raise. | standard |
| Handrail entry safety protection | Protection against risk of other objects being jammed into handrail entry. | standard |
| Over speed protection | Protection against risk of speed being over 20% of rated speed. | standard |
| Under speed protection | Protection against risk of speed being less than 20% of rated speed. | standard |
| Unintentional reversal protection | Protection against risk of unintentional reversal of the direction of travel. | standard |
| Phase failure protection | Protection against risk of phase failure. | standard |
| Short circuit protection | Protection against risk of short circuit. | standard |
| Over-load protection | Protection against risk of motor continually over load. | standard |
| Step(pallet)sagging protection | Protection against risk of steps (pallets) being breakage and sagging. | standard |
| Step(pallet)chains safety protection | Protection against risk of step (pallets) chains being breakage of undue elongation. | standard |

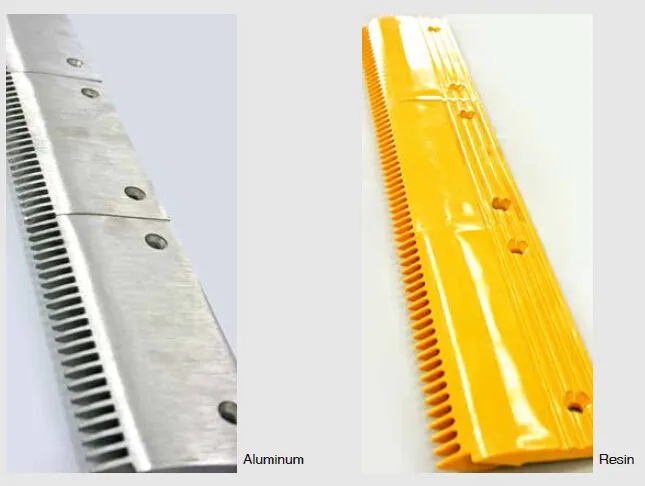

| Comb safety guard | Protection against risk of foreign objects being trapped at the point where the step (pallet) enters the comb. | standard |
| Inspection socket | To provide voltage to inspect or maintain. | standard |
| Machine room guard | One safety plate separates machine room from movable parts such as step to protect service personnel. | standard |
| Emergency stop button on control cabinet | Push the emergency stop button to stop the escalator (moving walk) against emergency raise when inspection and maintaining. | standard |
| Auxiliary brake | Auxiliary brake will act and stop the escalator (moving walk) in case of main drive chains breakage or the steps (pallets) or handrail changing from present direction of motion. | Optional |
| Handrail guard | Protection against risk of speed change and breakage of handrail. | Optional |
| Skirting guard | Protection against risk of foreign objects being jammed into clearance between steps (pallets) and skirting. | Optional |
| Main drive chains safety protection | Protection against risk of drive chains being breakage or undue elongation. | Optional |
| Skirting brush | Brushes on skirting to enhance the passenger' s safety. | Optional |
